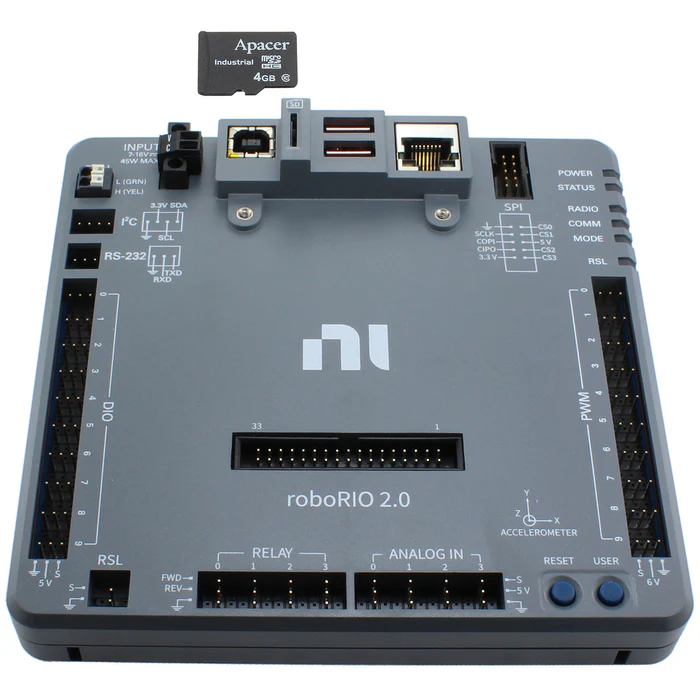

The RoboRIO2 is the current control system for FIRST Robotics Competition robots, supplanting the RoboRIO. The RoboRIO2 is set to be replaced by SystemCore in 2027.
RoboRIO2 Hardware Specifications
- DDR3 Memory: 512MB
- Nonvolatile Memory: 16MB onboard, 4GB microSD
- Digital I/O Ports: 10
- PWM Ports: 10
- USB-A Ports: 2
- CAN loops: 1
- Ethernet for connectivity
- USB 2.0 for writing software
RoboRIO Wiring
The roboRIO2 gets power from a 10 A fused port on a Power Distribution Hub or Power Distribution Panel 2.0. A Robot Status Light is wired to the RSL port, and a VH-109 or OM5P-AC radio is connected with an ethernet cable to the ethernet port. The CAN loop starts from the RoboRIO, and connects to any devices in the loop.
