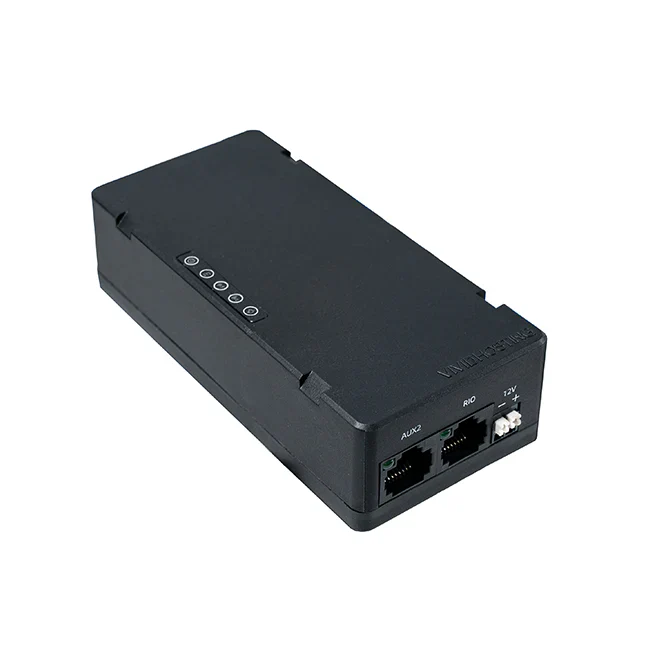

The VH-109 robot radio is made by VividHosting. The radio connects the robot to the driver station during practice or to the field during competitions. This radio replaced the OM5P-AC robot radio in 2025.
VH-109 Specifications
- WI-FI bands: 2.4 GHz practice band, 6GHz competition band
- Power Over Ethernet ports: 2
VH-109 Wiring
The VH-109 can be powered in a few different ways, but the team generally choses to power it using a Radio Power Module. The radio power module is attached to a Power Distribution Hub or Power Distribution Panel 2.0 and powers the radio using power over ethernet.
